III. Software Installation and Configuration Manual

This document is a software installation and configuration manual for the SafeMesh system

Adaptation system version: V1.0.0

Document version: V1.0

Release date: January 1, 2026

Published by: EFFORT

Document Revision Records

Version number	Revision date	Summary of revisions	Reviser	Reviewer
V1.0	2026-1-1	Initial release	JLJ	Shyne

1. Preamble

1.1 Document Objectives

Provide users with step-by-step software installation, initialization configuration, and basic validation

Guide the completion of software installation, initialization configuration, and basic verification

1.2 Target Audience

System Administrator/IT Engineer

1.3 Document Scope

Software installation steps

Prerequisite Documentation: System Overview and Installation Guide (Must-Read)
Parallel Documentation: Hardware Connection and Deployment Guide

1.5 Symbolic Conventions

⚠️ Indicates key considerations
ℹ️ Tip information
▶️ Indicates the start of the operation step

2. Preparation Before Installation

Server CPU : intel® Core™ i5-6400
Server RAM : 8G
Server storage : 128G
Server OS : Windows 11 - 64bit

2.2 Obtain Installation Resources

Get the installation package from your account manager

2.3 Network and Security Configuration

ports	agreement	Uses:	Firewall requirements
3000	TCP	server	Inbound/outbound is allowed
3547	UDP	MQTT communication	Inbound/outbound is allowed
3548	UDP	OTA upgrades	Inbound/outbound is allowed
8012	TCP	client	Inbound/outbound is allowed
8189	TCP	Dongle driven	Inbound/outbound is allowed
13306	TCP	database	/

⚠️ The above ports are required for the system, please note port conflicts

⚠️ Firewall requirements need to be manually configured by the user

⚠️ When installing the system, please turn off the antivirus software or add the software to the trust zone: you need to create a directory first, put it in the trust zone, and then install the software into this directory.

Network stability requirements: It is recommended to have a delay of <30ms and a packet loss rate of 0%, and the system is running in a network with a high packet loss rate, and the user operation command cannot be issued to the device.

3. Software Installation Process

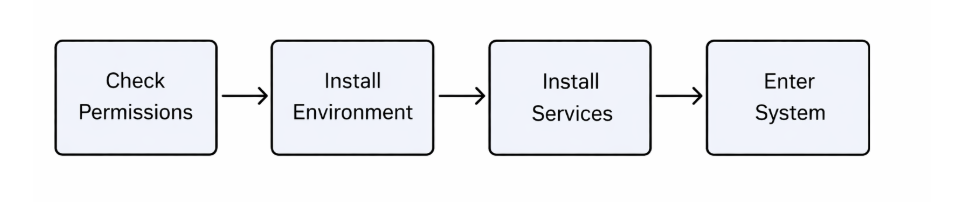

3.1 Installation Process Diagram

3.2 Permissions and Dependencies Check

Admin privilege verification

Windows: On the cmd command line, type:

whoami /groups | findstr "Administrators"

If the output includes Administrators, the user has administrator privileges.

Linux: Enter on the command line

whoami

If the output is root, it means that you have administrator privileges.

Dependency library installation checklist
1. Nodejs
2. Mysql
3. Vikey
4. Microsoft Visual C++ Redistributable

  ℹ️ The above environment will be installed automatically when the system is installed, and users do not need to install it themselves.

3.3 Environmental Installation

▶️ Step 1: Launch the installation wizard by double-clicking on the infinite-win-1.0.19-x64.exe

▶️ Step 2: Click Next

▶️ Step 3: Configure the installation path and click Install

▶️ Step 4: To complete the installation, click Finish

3.4 Service Installation

▶️ Step 1: Click Install System and wait for the installation to complete. ⚠️ Note: If there is no pop-up error prompt, it means that the installation is in progress, please be patient.

4. Initial Configuration Wizard

▶️ Step 1: Click on System Entry to enter the system page.

5. Service Management and Verification

5.1 Service Management Commands

button	Meaning
	Installation services
	Restart the system
	Back up your data
	Import the backed up data file and reset the version
	Uninstall the system
	Service status: Green: Normal operation; Yellow: Service abnormality
	Port status: Green: Normal operation; Red: Abnormal port
	Dongle drive status: Green: Normal operation; Red: The dongle drive is abnormal
	Click to open the system page

5.2 Health Status Verification

The port is wrong, click to see the solution

Dongle error, click to see the solution

Service error, click to view the solution

6. Backup and Reset

6.1 Data Backup

▶️ Step 1: Click on Backup System

▶️ Step 2: Select the save path and wait for the save to succeed

6.2 Resetting the System

▶️ Step 1: Click Restore System

▶️ Step 2: Select the version you wish to reset and click Open.

▶️ Step 3: Wait for the reset to complete

6.3 Uninstall Procedure

6.3.1 Uninstall the Service

▶️ Step 1: Click Uninstall System, click yes

▶️ Step 2: The uninstall environment window pops up, click cancel, only the service will be uninstalled, click Install System to install it again.

⚠️ Note: The current progress is only to uninstall the service, click Install System to install it again.

6.3.2 Uninstall the Environment

▶️ Step 1: Click Next in the pop-up uninstall window and wait for the uninstallation to complete.

▶️ Step 2: Click Finish to complete the uninstallation

⚠️ Note: The current progress has been completely uninstalled, double-click the installation wizard infinite-win-1.0.16-x64.exe to install it again
