B.remote control instructions

SafeLUX User Manual for Remote Control Function

This document is the user manual for the remote control function of the SafeLUX system

Version:V1.0

Release time:November 24, 2025

Publisher:EFFORT

Document modification record

Version Date Modified content Modifier
V1.0 20251210 First creat Mihcael

1. Functional Description

  • By using the remote control function, you can access the locally deployed software system on the remote Internet.
  • In the office, different regional system software can be accessed by entering a specific domain name through a browser.
  • The content of remotely accessed web pages is the same as that of locally deployed web pages, and the data is also shared.

2. Usage requirements

  • :warning: SafeLUX system has been installed locally.
  • :warning: The remote control function can only be enabled within the local area network where the system is deployed.
  • :warning: Once the remote control function is turned off remotely, remote control cannot be performed unless the remote control function is enabled within the local area network where the system is deployed.

3. Usage steps

3.1 Configuration page

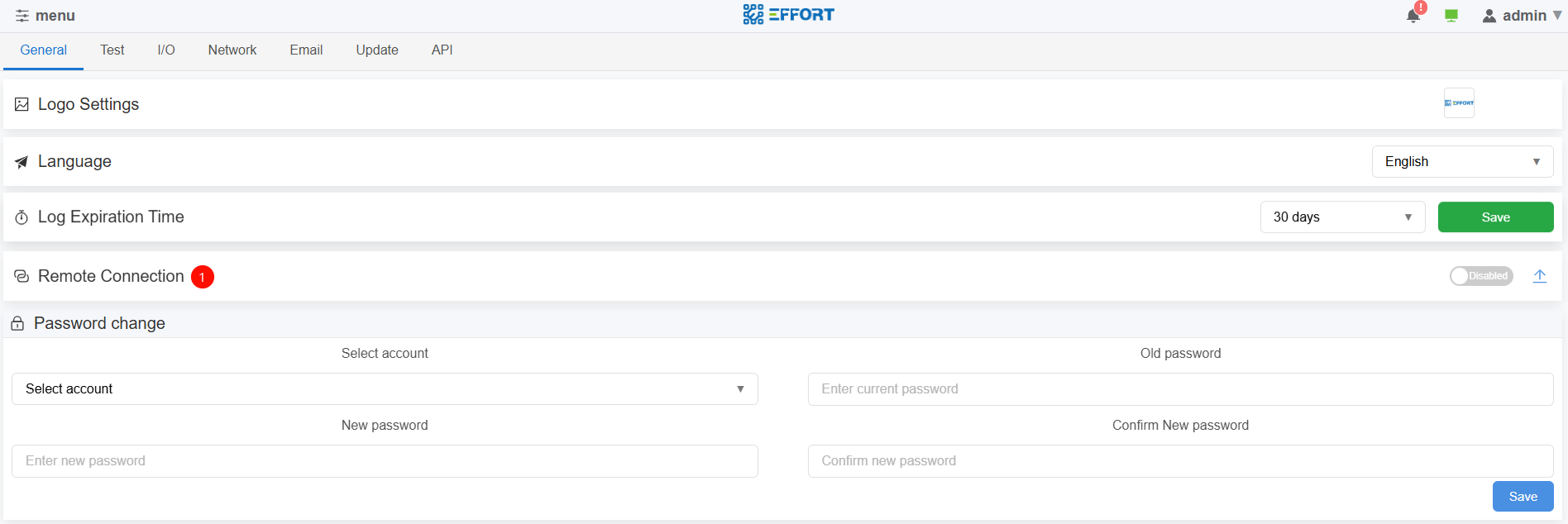

configuration path.png

configuration path

Open the local system and enter the configuration page.

Path: Configuration -> General -> Remote Connection

3.2 First time use function

First-time use.png

First-time use

When the remote control function is first enabled, a prompt will appear because there are no activated files on the local host.

You need to follow the prompts to send the local key (and the domain name you want) to the system provider. When the system supplier prepares the activation file and sends it to you, you can upload the activation file.

3.3 Select activation file

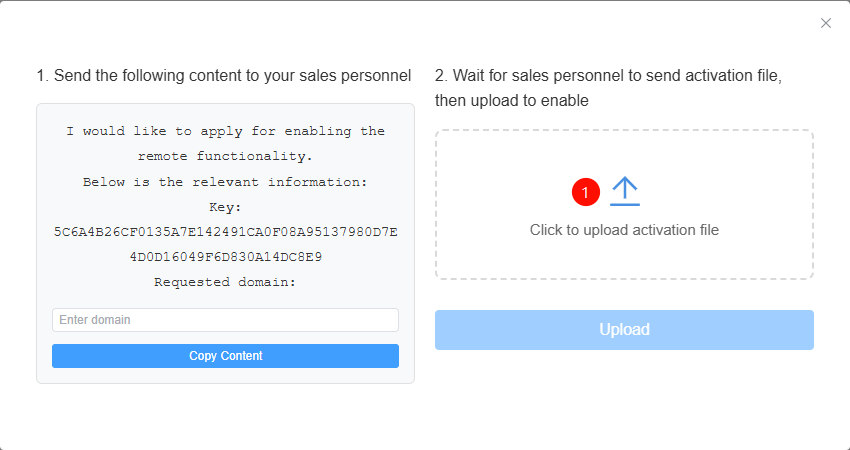

Select activation file.png

Select activation file

After receiving the activation file, click "click to upload activation file" and select the activation file.

3.4 Upload file

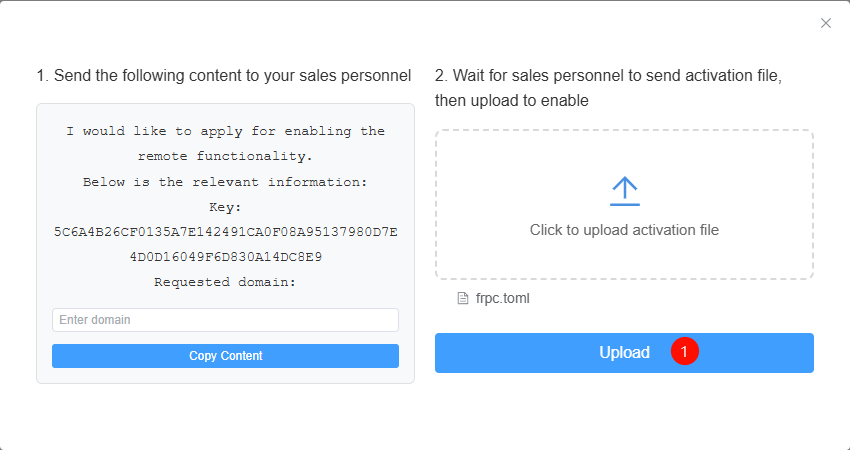

Upload file.png

Upload file

Click 'Upload' to upload the activation file.

3.5 The configuration page after uploading the activation file

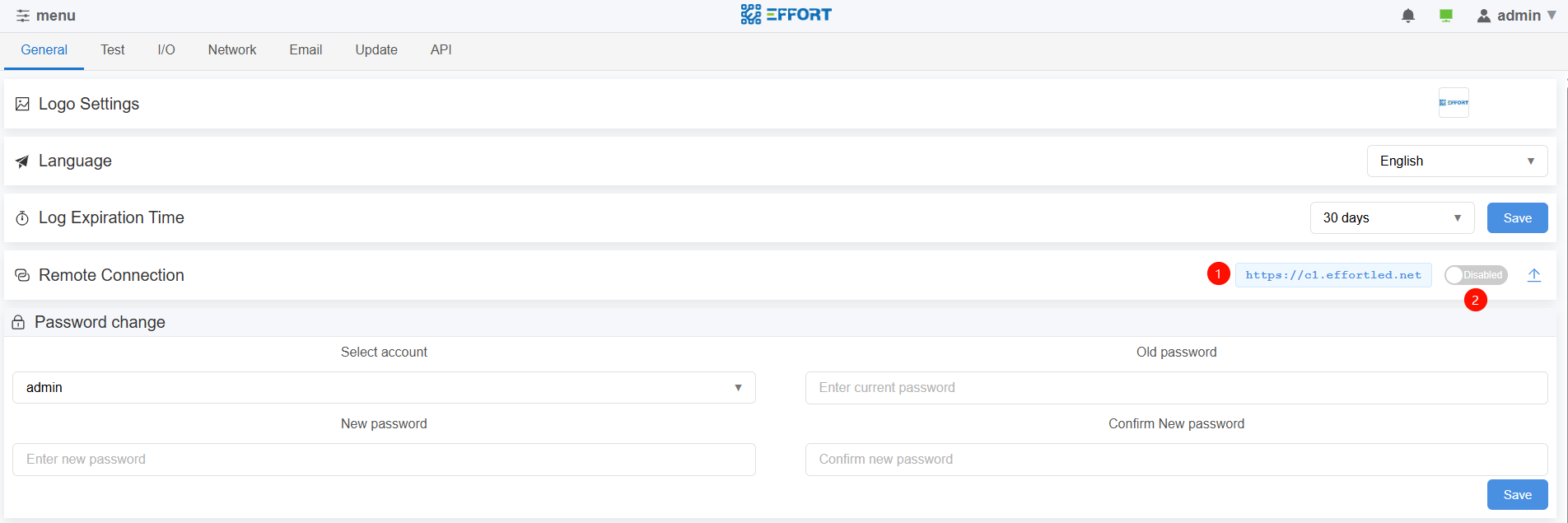

After configuration.png

After configuration

You can see the remote access domain name marked as 1 on the page. The button labeled 2 can be used to turn on or off the function.

3.6 Open function

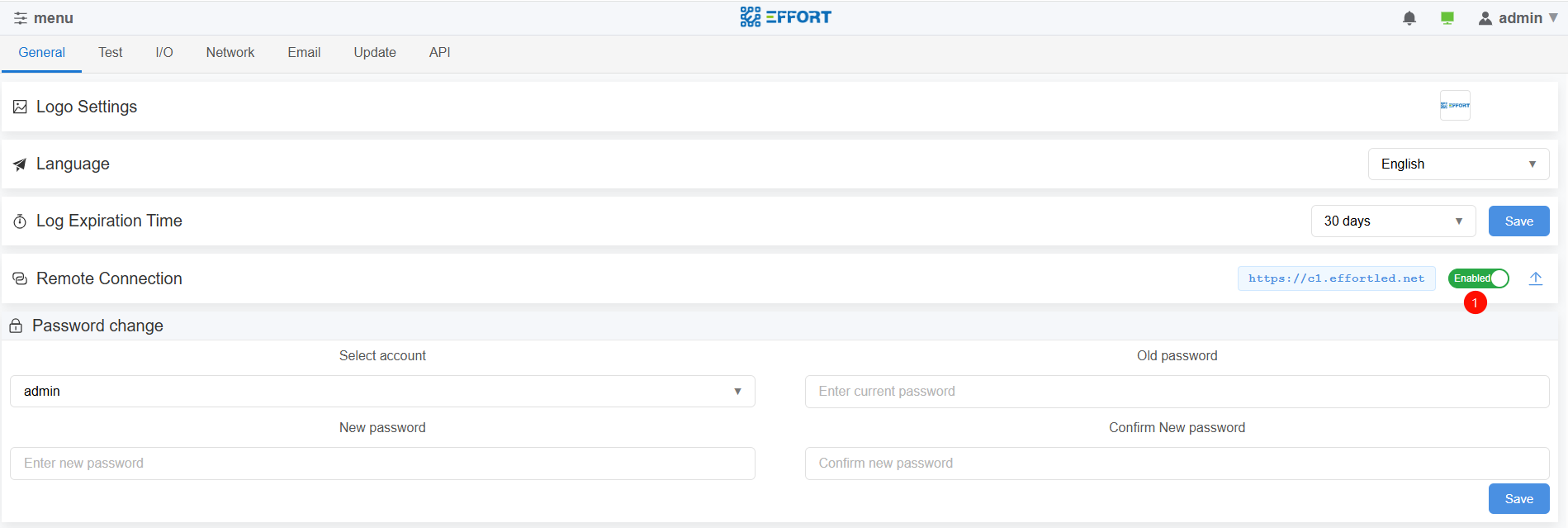

enable function.png

enable function

Click the button to activate the function. You can click the back button to change configurations.

3.7 Remote access through domain name

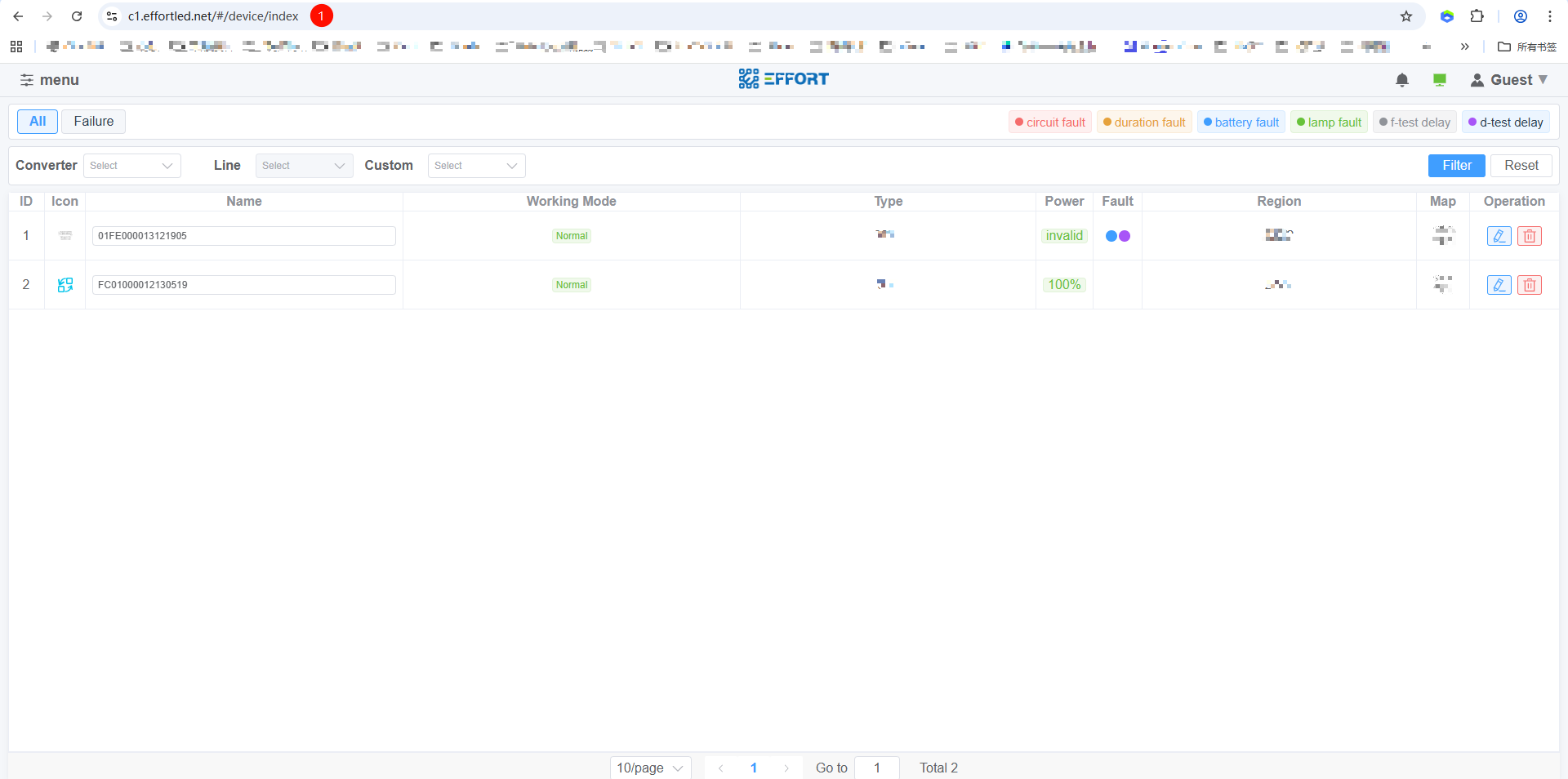

remote access.png

remote access

By entering the domain name in the browser, remote access can be performed.

4. Q&A

Q：No activation file
A：Please communicate with the seller of your system and provide relevant information to obtain the activation file later.

Q：I have uploaded the file but still cannot access it
A：After uploading the file, the function needs to be opened through the button on the configuration page.

5. Technical support
