SLX-GW/S-DL/C2 User Manual

This document is the user manual for the sub converte SLX-GW/S-DL/C2 in the SafeLUX system

Document version:V1.0

Release Date:December 15, 2025

Publisher:EFFORT

Document Modification Record

Version	Date	Modified content	Modifier
V1.0	20251215	First creat	Mihcael

1. Safety Instructions

• :warning: Operating Temperature Range: -20°C to 55°C. Do not use the device outside this temperature range.

• :warning: Avoid direct sunlight exposure to prevent housing deformation and internal component damage.

• :warning: Keep the device clean and free of dust accumulation to avoid poor heat dissipation.

• :warning: Use only power supply units that meet the specified requirements.

• :warning: Installation must be performed by professional personnel. Installation by non-professionals may cause equipment damage or personal injury.

• :warning: Do not use the device in humid, dusty, or corrosive environments.

  :warning: Ensure the installation location is away from heat sources and flammable materials.

• :warning: A reset operation will clear all connected devices. Perform this operation only when necessary and by professional personnel.

• :warning: Implement electrostatic discharge (ESD) protection during installation.

2. Product Overview

• Used to convert DALI signals into RS485 signals and transmit them to the host through RS485 cables

• Sub converter for DALI device control

• RS485 connection to the master converter

• RS485 communication method

• Modbus protocol

• Dial code to select slave address (1-15)

• 24V DC power supply

• DALI channel number:2

• Rail mounted installation

Model Description:

• SLX:SafeLUX

• GW/S:sub converter(gatway)

• DL:DALI

• C2:Channel*2

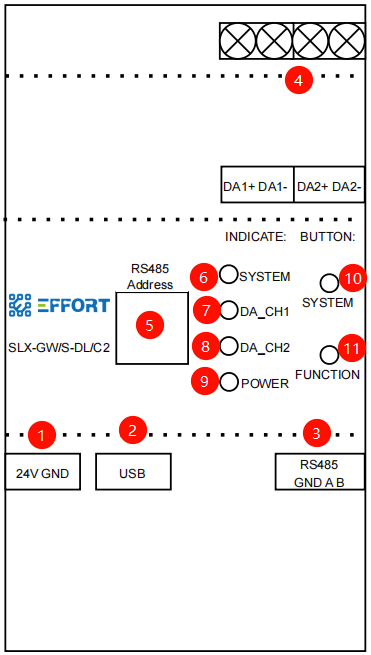

Interface Definition and Layout Diagram of Indicator Lights and Buttons:

Interface No.	Interface Name	Terminal Type	Wiring Sequence Definition	Wiring Notes
1	Power Interface	2-pin Plug-in Terminal Block (0.2-1.5mm²)	1=DC+（24V）、2=DC-（GND）	Do not connect to AC power.
2	USB Slave Interface	USB-B	-	-
3	RS485 Interface	3-pin Plug-in Terminal Block (0.2-1.5mm²)	1=GND、2=A、3=B	A/B wires must not be reversed; add 120Ω terminal resistors at both ends of the bus.
4	DALI Interface * 2	2-pin Screw-Type Terminal Block (0.5 - 2.5mm²)	1=DALI+、2=DALI-	Two channels adopt independent wiring; do not mix the connections.
5	RS485 address encoders	0-F encoded digital encoder	-	-
6	System Indicator Light	-	-	-
7	System Indicator Light	-	-	-
8	System Indicator Light	-	-	-
9	Power Indicator Light	-	-	-
10	System Button	-	-	-
11	Function Button	-	-	-

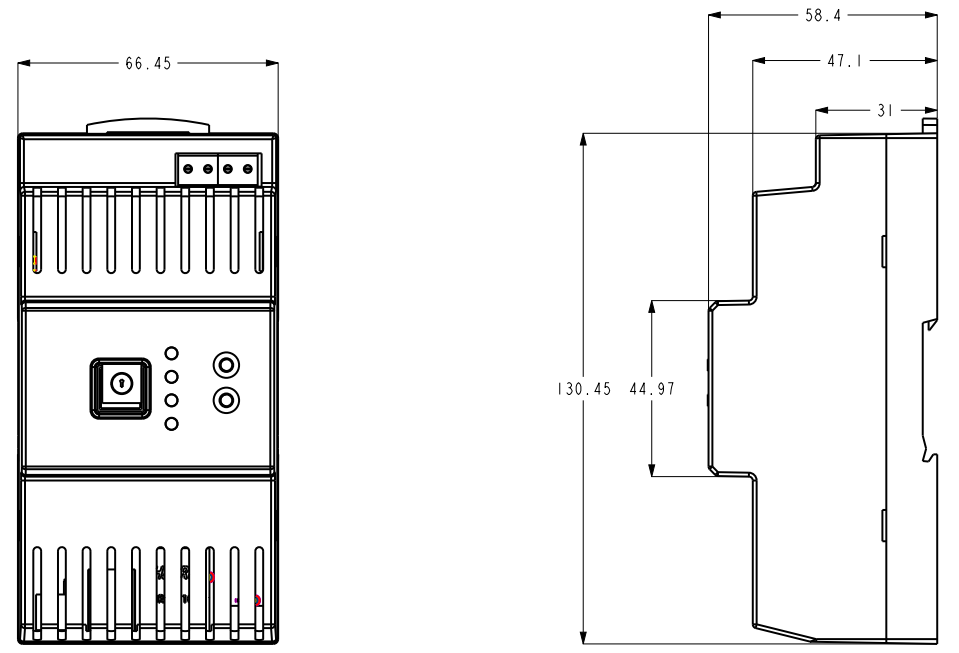

3. Mechanical Dimensions & Packaging Specifications

unit:mm

Weight per pc:

Packaging dimensions:

Packing list:

4. Installation Guide

4.1 Unboxing Inspection

• Check the package contents: SLX-GW-DL_C2, installation accessories, and other necessary components.

• Inspect the product appearance for damage.

4.2 Installation Environment Requirements

• Ambient Temperature: -20℃ to 55℃.

• Ambient Humidity: 10% ~ 90% RH (no condensation; do not install in humid environments such as flooded areas of basements).

• Installation Location: Keep away from heat sources, avoid direct sunlight, and stay clear of strong electromagnetic interference sources (e.g., frequency converters, high-power motors, high-voltage cables) with a minimum distance of ≥ 1 meter.

• Installation Method: Only supports 35mm standard DIN rail mounting.

• Rail Thickness: 1.0 ~ 1.5mm; the bayonet must be securely fastened during installation.

• The length of the RS-485 bus shall not exceed 800 meters.

4.3 Power Supply and Cable Adaptation Requirements

4.3.1 Power Supply Adaptation Requirements

SLX-HT must use a DC 24V power supply that meets the following parameters:

• Output Voltage: DC 24V (allowable range: 22.8V - 25.2V);
• Rated Power: ≥2W (to avoid device restart due to insufficient power supply);
• Power Supply Type: AC/DC adapter or switching power supply complying with safety standards;
• Interface Matching: Must be used with 2-pin plug-in terminal blocks (pin spacing 5.08mm). Gold-plated terminals are recommended to reduce contact resistance.

4.3.2 Cable Selection Requirements

Cables for different interfaces shall be selected in accordance with the following specifications to avoid signal interference or transmission failures:

Interface Type	Cable Specification Requirements	Maximum Transmission Distance	Additional Requirements
RS485 Interface	Twisted pair shielded cable (RVSP 2×0.75mm²)	≤1200 meters	The shield layer shall be single-ended grounded (ground resistance ≤4Ω)
DALI	1.50 mm^2 Conventional Cables	≤300 meters	Do not use Ring wiring or Mesh wiring.
USB	Standard copper cable (AWG28-24 gauge)	≤5 meters	The cable shall include four cores: D+, D-, VCC and GND; Shielded cables shall be used for lengths exceeding 3 meters

Note: For detailed technical parameters (such as power supply parameters, RS485 technical parameters, etc.), refer to the 《SLX-GW-DL_C2 datasheet》.

4.4 Installation Steps and Wiring Instructions

1. Select the installation location: ensure compliance with environmental requirements.

2. Mount the sub master converter on the guide rail.



   install

3. Connect the RS-485 interface of the host or master converter to the RS-485 interface of the sub converter via the RS-485 bus.



   485_connect

4. Set the RS485 slave address of the sub converter via RS485 address encoders.



   address_switch

• :warning: On the same RS-485 bus, the RS-485 slave addresses of all sub converters must not be duplicated.

• :warning: The RS-485 slave address must not be set to 0.

6. Connect the DALI cable to the DALI lamps.

7. Connect the output interface of the power supply to the master converter's power supply port.



   power_connect

8. Power on

9. Log in to the host WEB system to operate the converter

5. Operation Instructions

5.1 Key Functions

Key	Action	Description
system	Long Press	Reset
system	Double Press	Reboot
function	Single Press	All devices under all DALI channels execute the Identify command
function	Long Press	Extended Scan for All DALI Channel Devices
system+function	Long Press	Reset DALI Devices under All DALI Channels

5.2 Indicator Light Status

Indicator	Status	Description
system	Green light solid on	Working normally, no data interaction on 485 bus
system	Green light turns off for 100ms once	Working normally, data interaction on 485 bus
system	Green light off for 100ms, on for 500ms	System key long press activated
system	Red light off for 250ms, on for 250ms	Abnormal RS-485 address setting of the sub converter
cahnnel X	Green light solid on	Working normally, no data interaction on DALI bus
cahnnel X	Green light turns off for 100ms once	Working normally, data interaction on DALI bus
cahnnel X	Green light off for 100ms, on for400ms	Function key long press activated
cahnnel X	Green light off for 500ms, on for 500ms	DALI bus X searching for device
cahnnel X	Green light off for 1000ms, on for 1000ms	Device duration test in Progress on DALI Channel X
cahnnel X	Red light solid on	DALI Channel X fault
cahnnel X	Red light off for 250ms, on for 250ms	Device fault on DALI Channel X
cahnnel X	Red light off for 500ms, on for 500ms	Device miss on DALI Channel X

6. Testing and Verification

This product is a DALI 2-channel sub converter component in the SafeLUX system, therefore it needs to be used in conjunction with the SafeLUX system host.Or connect the sub converter to the master converter via the RS-485 bus to expand the number of DALI channels of the master converter.

After adding a converter to the SafeLUX system, you can control the converter and the DALI lamps mounted under the converter DALI bus on the SafeLUX system page.

For more information, please refer to the SafeLUX host user manual, SafeLUX system user manual, and other related documents.

Basic Verification Steps(Connect the sub converter to the host):

1. Hardware connect

2. Power on the system

3. Log in to the host system

4. Access the device management page

5. Add the sub converter (Add sub converter via 485 Bus)

6. Perform other operations

Basic Verification Steps(Connect the sub converter to the master converter):

1. Hardware connect

2. Power on the system

3. Log in to the host system

4. Access the device management page

5. Add the master converter (Add master converter via network)(If the host and the master converter are on the same local area network (LAN), automatic converter addition is available)

6. Expand the DALI bus of the master converter(If it is a newly added master converter, it will automatically scan for sub converters during the addition of the master converter to expand the DALI channels.)(If a new sub converter is added to the RS-485 bus of the master converter that has already been added to the system, it is necessary to manually perform the operation of expanding DALI channels on the page.)

7. Perform other operations

7. Troubleshooting

Troubleshooting Based on Indicator Light Status and Description

Phenomenon	Troubleshooting Directions
system led:Red light off for 250ms, on for 250ms	The RS-485 slave address set to 0.
cahnnel X led:Red light solid on	DALI X Channel Fault: Check DALI Interface Voltage
cahnnel X led:Red light off for 250ms, on for 250ms	There is device failure under the DALI X Channel; check whether there is any devie failure under the channel.
cahnnel X led:Red light off for 500ms, on for 500ms	Device loss occurs under the DALI X Channel; check for device loss or bus disconnection under the channel, and perform bus cable repair or device repair.

7.2 Common Questions Q&A

Q：485总线上总共可以扩展几个子转换器？
A：最大15个，地址是1-F

Q：如何区分主转换器和子转换器？
A：主转换器带网口，子转换器不带网口

8. Technical Support and Maintenance

• Technical support email:technical@effortled.com

• Daily maintenance cycle (clean the dust from the gateway's heat dissipation holes every 3 months; check if the wiring terminals are loose every 6 months);

• Firmware upgrade method (Host WEB page -> Configuration -> Update -> Upload firmware);
