SLX-GW-DL/C2 Datasheet

This document is the datasheet for the 2-channel DALI master converter (network communication) component SLX-GW-DL/C2 in the SafeLUX system

Document version:V1.0

Release Date:December 15, 2025

Publisher:EFFORT

Document Modification Record

Version	Date	Modified content	Modifier
V1.0	20251215	First creat	Mihcael

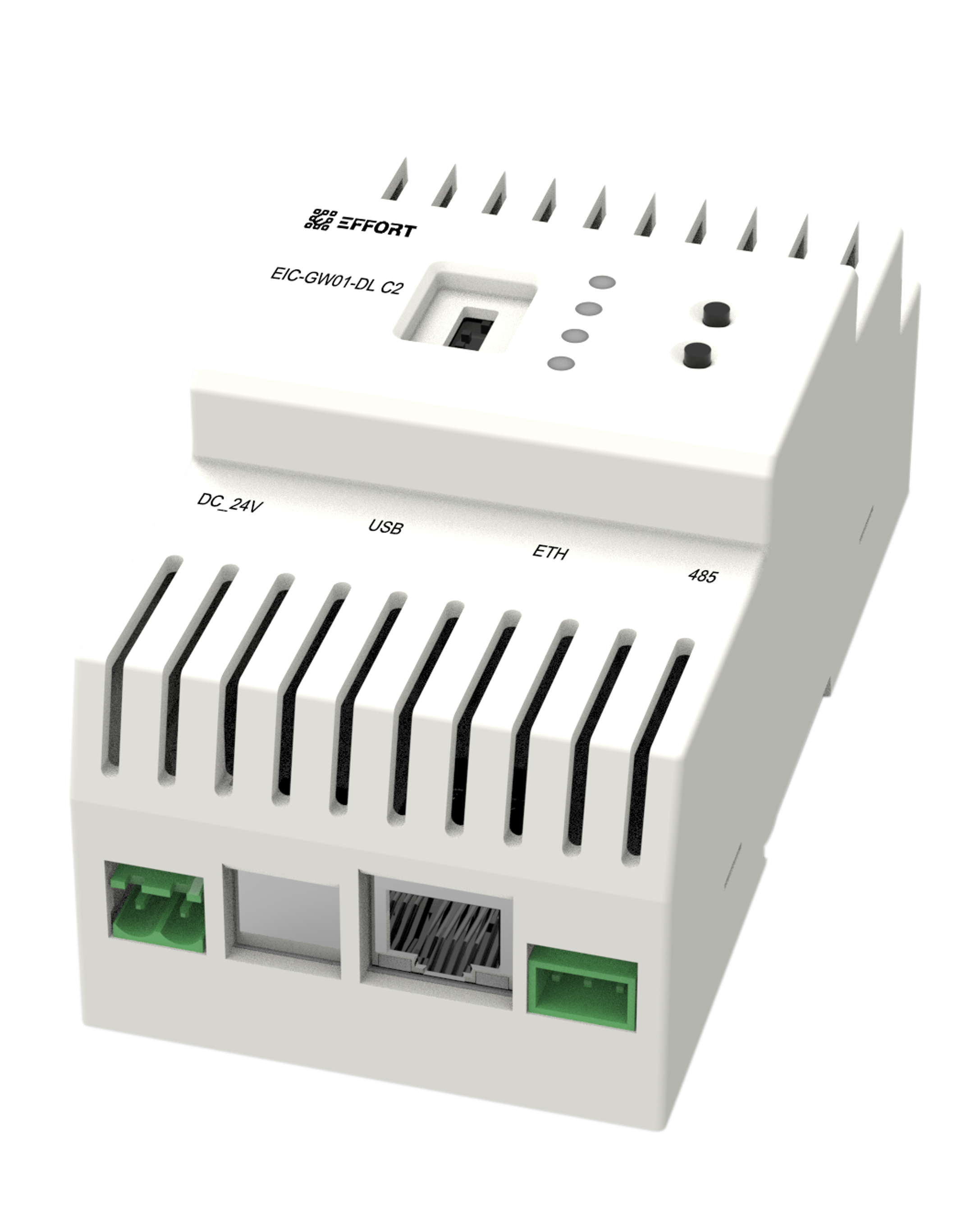

1. Product Overview

• Used to convert DALI signals into network signals and transmit them to the host through Ethernet cables

• Master converter for DALI DT1 device control

• Local web pages can configure network parameters

• RS485 port expansion DALI bus

• 100M Ethernet communication

• 24V DC power supply

• DALI channel number:2

• Rail mounted installation

Model Description:

• SLX:SafeLUX

• GW:master converter(gatway)

• DL:DALI

• C2:Channel*2

2. Technical Specifications

Power Port Specifications
Power supply method	DC
Input voltage range	22.8V-25.2V
Typical Operating Power	1.5W
Full-load Operating Power	8W
Reverse connection protection	Support
Interface type	5.08mm pitch plug-in terminal block(2 pin)
Wiring width	0.2 - 1.5 mm^2

DALI Interface Specifications
Supported Device Type	DT1
Maximum Number of Supported Devices per Channel	64
DALI Bus Power Supply Integrated	Yes
DALI Bus Voltage per Channel	15V-18V
DALI Bus Output Current per Channel	130 mA
Device Data Refresh Rate	100ms
Interface type	Screw-Type Terminal Block
Wiring width	0.5 - 2.5 mm^2

Network Interface Specifications
Interface type	RJ45
Network speed	10/100Mbps auto-negotiation
Communication standard	IEEE 802.3u
Duplex Mode	Full Duplex/Half Duplex auto-negotiation
Wiring Type	Does not support Straight-Through / Crossover Cable Auto-Adaptive

RS485 Interface Specifications
Interface type	3.50mm pitch plug-in terminal block(3 pin)
Wiring width	0.2 - 1.5 mm^2
Communication standard	Modbus
Baudrate	9600bps
Data bits/stop bits	8/1
Parity	NONE
Maximum load quantity	15
Opto-Isolation	Supports 3750V Opto-Isolation
Termination Resistor	No 120Ω Termination Resistor

Other Specifications
Operating temperature range	-10°C to +55°C
Storage temperature range	-20°C to +70°C
Electromagnetic compatibility (EMC)	EN 61000-6-2 / EN 61000-6-4
Ingress protection (IP) rating	IP30 (Dust-proof, not water-proof, suitable for indoor cabinets)

3. Mechanical Dimensions & Packaging Specifications

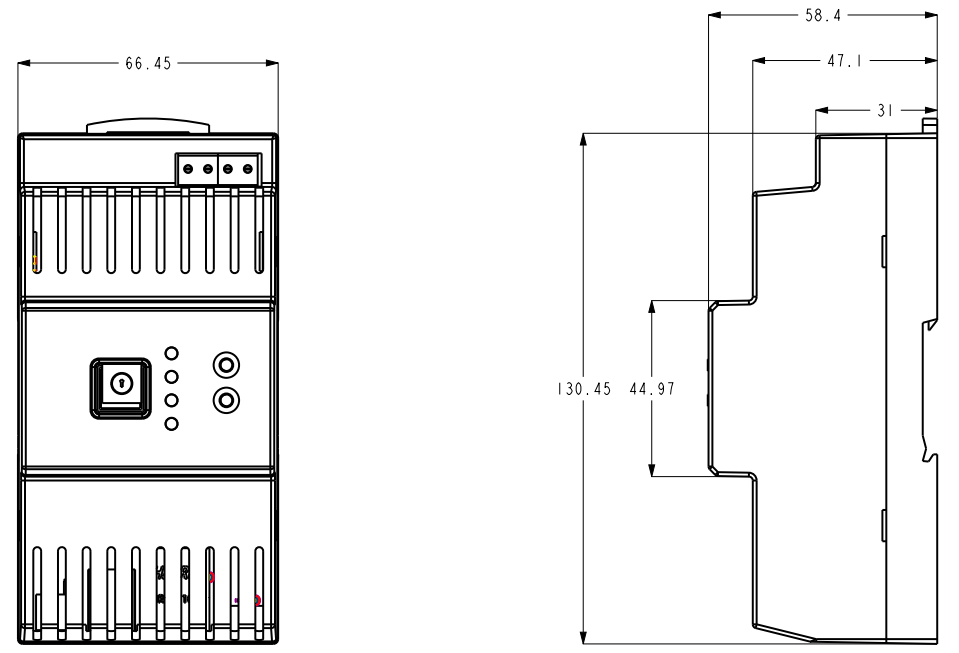

unit:mm

Weight per pc:

Packaging dimensions:

Packing list:

4. Certifications

CB

5. Extended Model Description

• SLX-GW01-DL/C4:4-channel DALI master converter
• SLX-GW01-DL/C8:8-channel DALI master converter
• EIC-GW01_T-DL_C8:2-channel DALI master converter with touchscreen

6. Appendix Notes

This product is a component of the 2-channel master DALI converter in the SafeLUX system, so it needs to be used in conjunction with the SafeLUX system host.

After adding a converter to the SafeLUX system, you can control the converter and the DALI lamps mounted under the converter DALI bus on the SafeLUX system page.

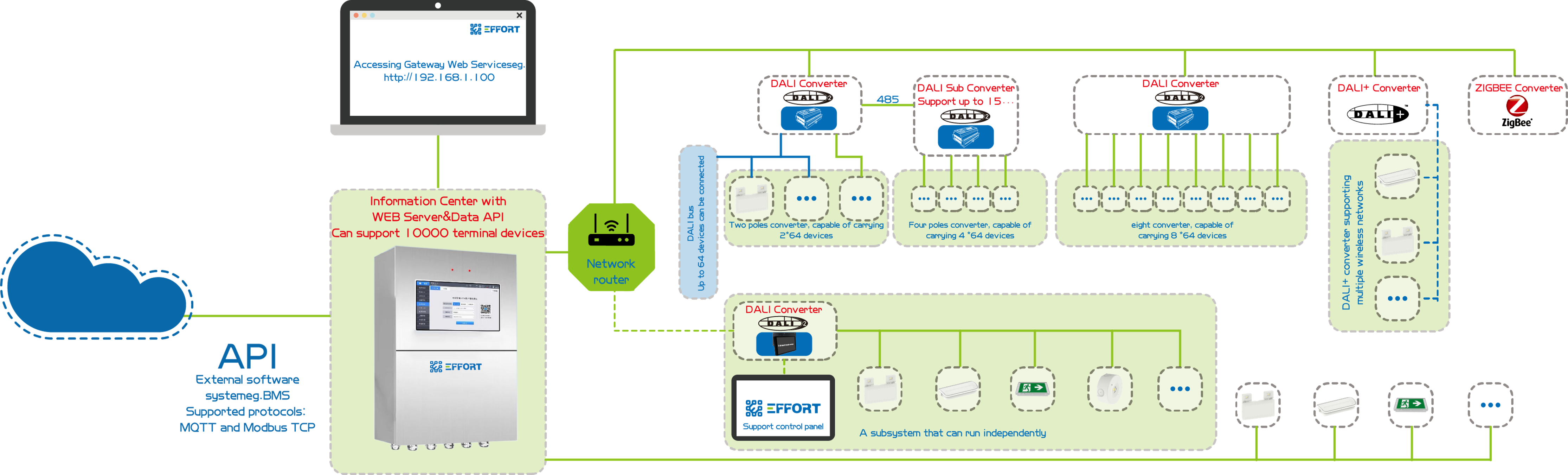

SafeLUX is a locally deployed emergency lighting management system consisting of a central CPU controller and busscalable gateways,which with an open API and it can control 10000+ DALI-2 emergency devices and can provide local website services.

SafeLUX is a locally deployed emergency lighting management system consisting of a central CPU controller and busscalable gateways,which with an open API and it can control 10000+ DALI-2 emergency devices and can provide local website services.

SafeLUX system features：

• Support EMERGENCY LINGHT TESTING

• DALI2 CONNECT:SUPPORT DALI DT1 DEVICE

• Using HIGH PERFORMANCE CPU: SUPPORT 10000+ DEVICE

• Support BUS EXPANSION TECHNOLOGY

EMERGENCY LINGHT TESTING supports the following functions:

• Lamp instruction control

• Real time detection of lamp status

• Automatically collect test results

• Test sequence setting

• Architectural map

• Support sending emails

• Historical event records

• API Data Interface

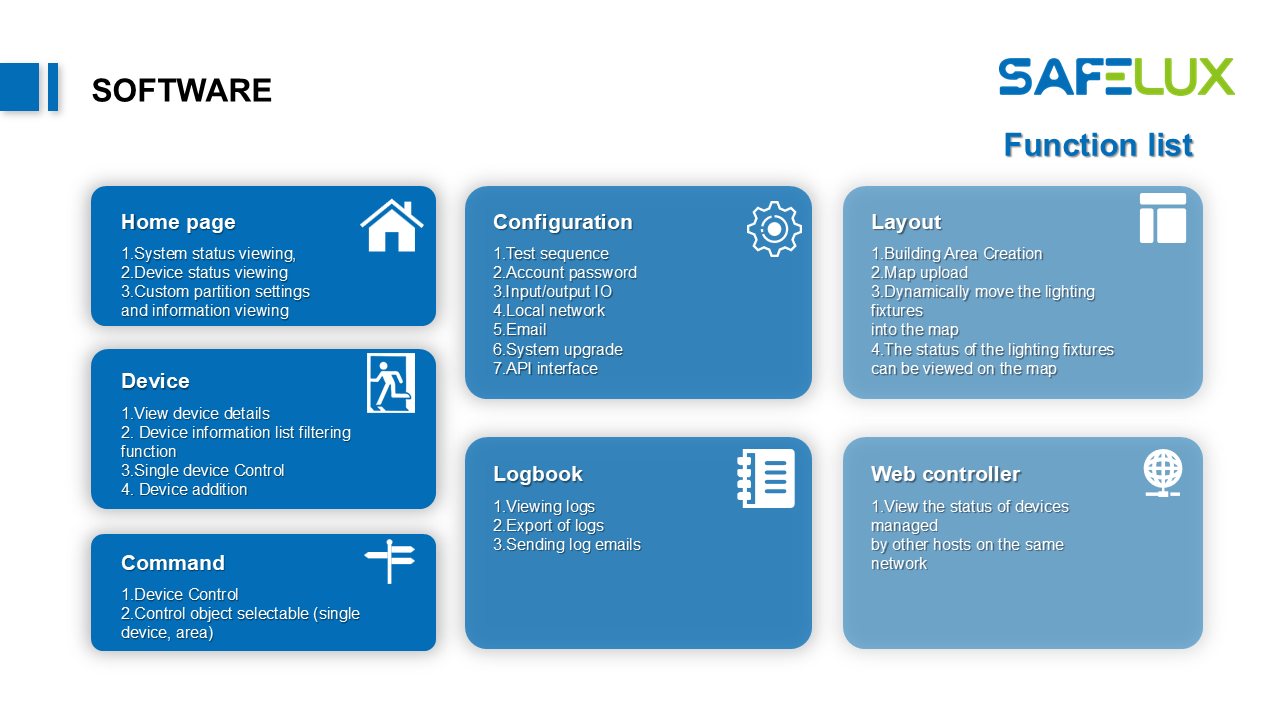

SafeLUX host web support features:

For more information, please refer to the SafeLUX host user manual, SafeLUX system user manual, and other related documents.
